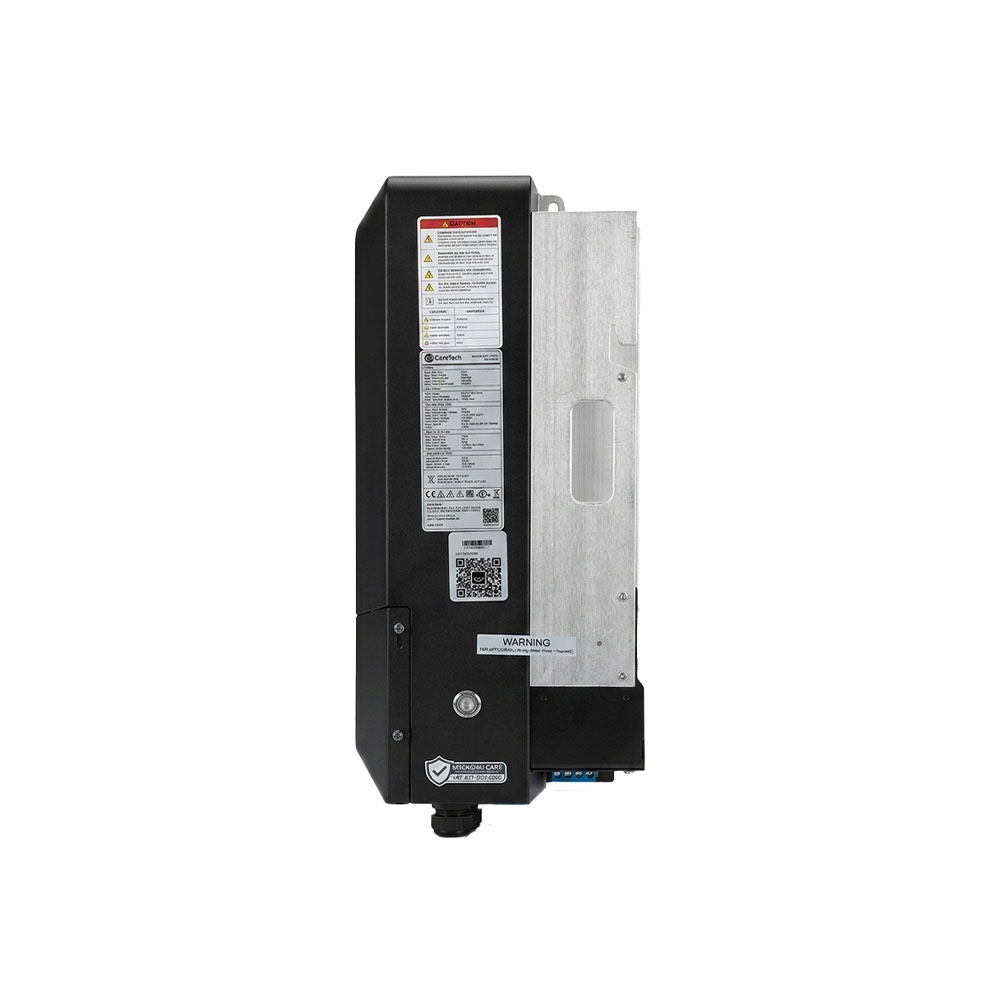

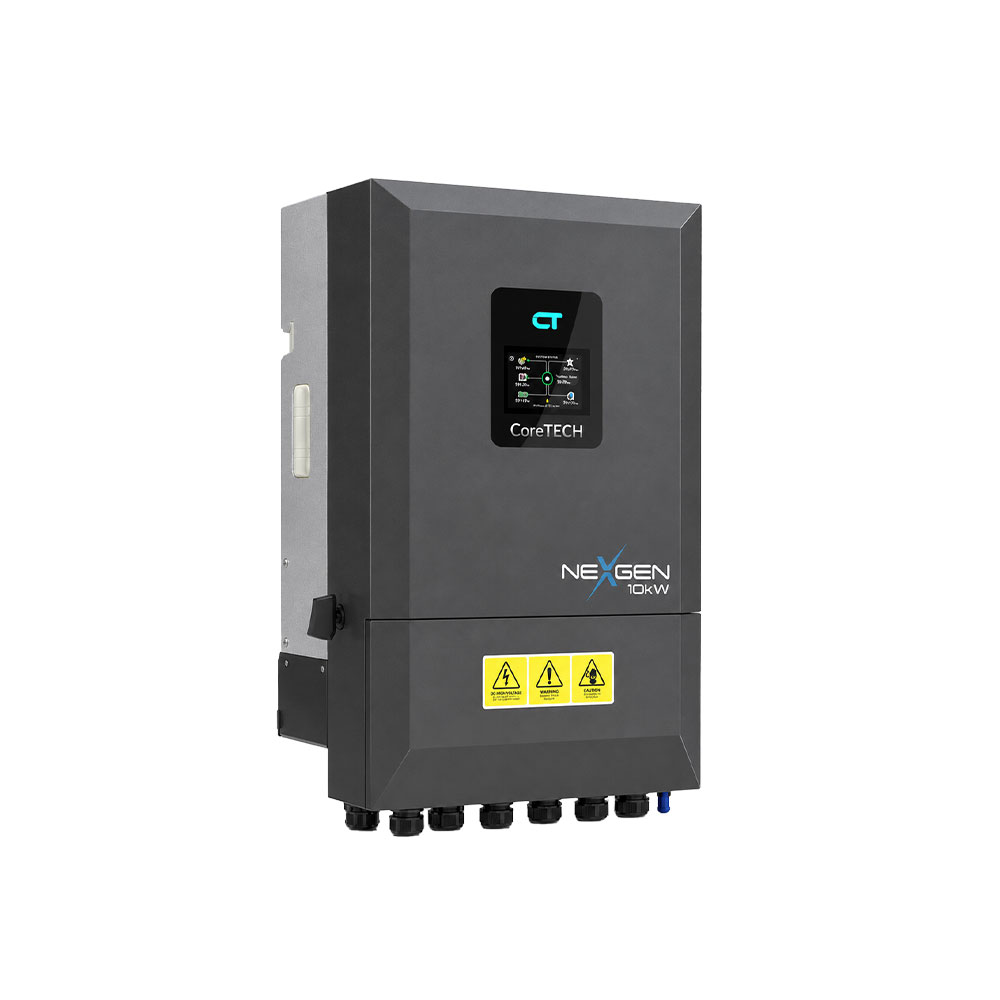

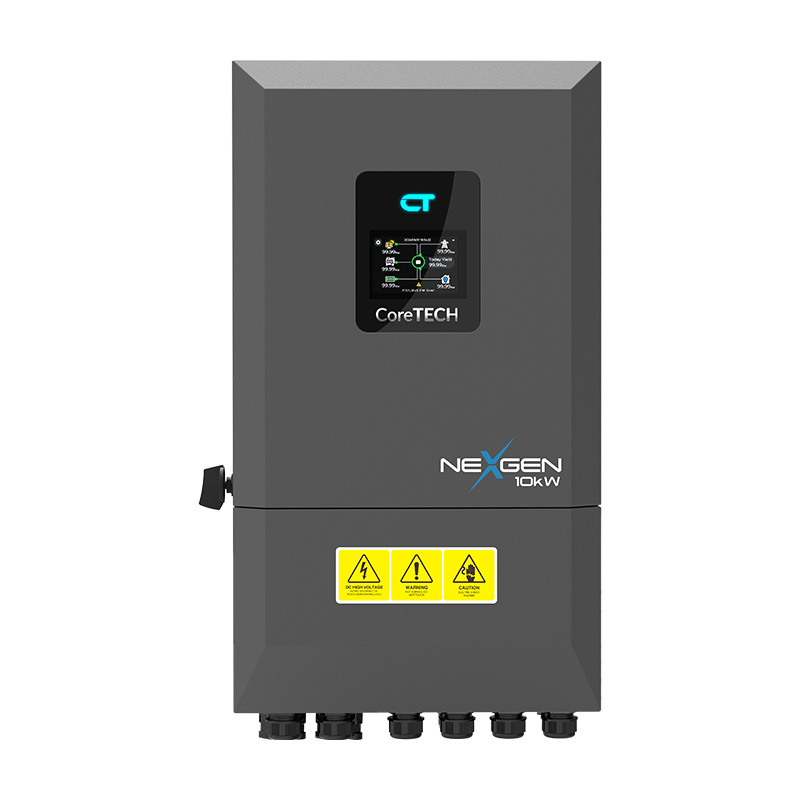

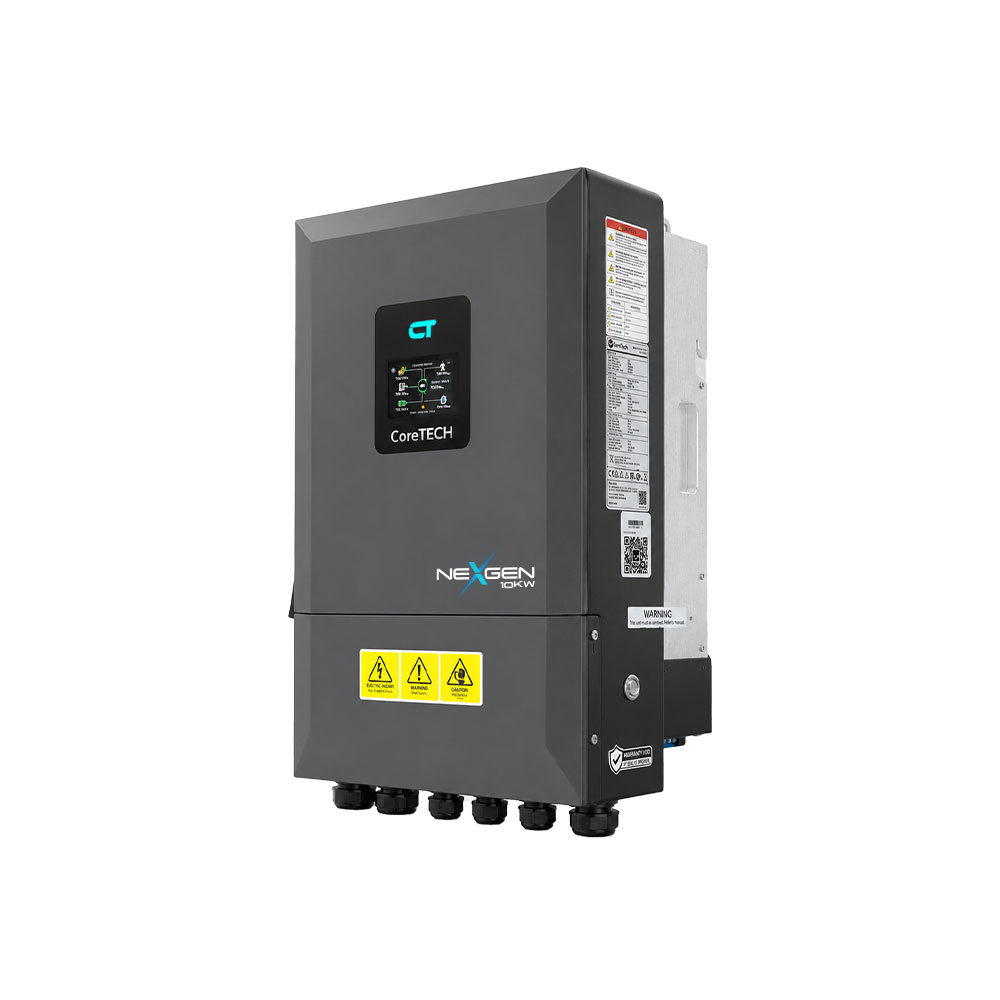

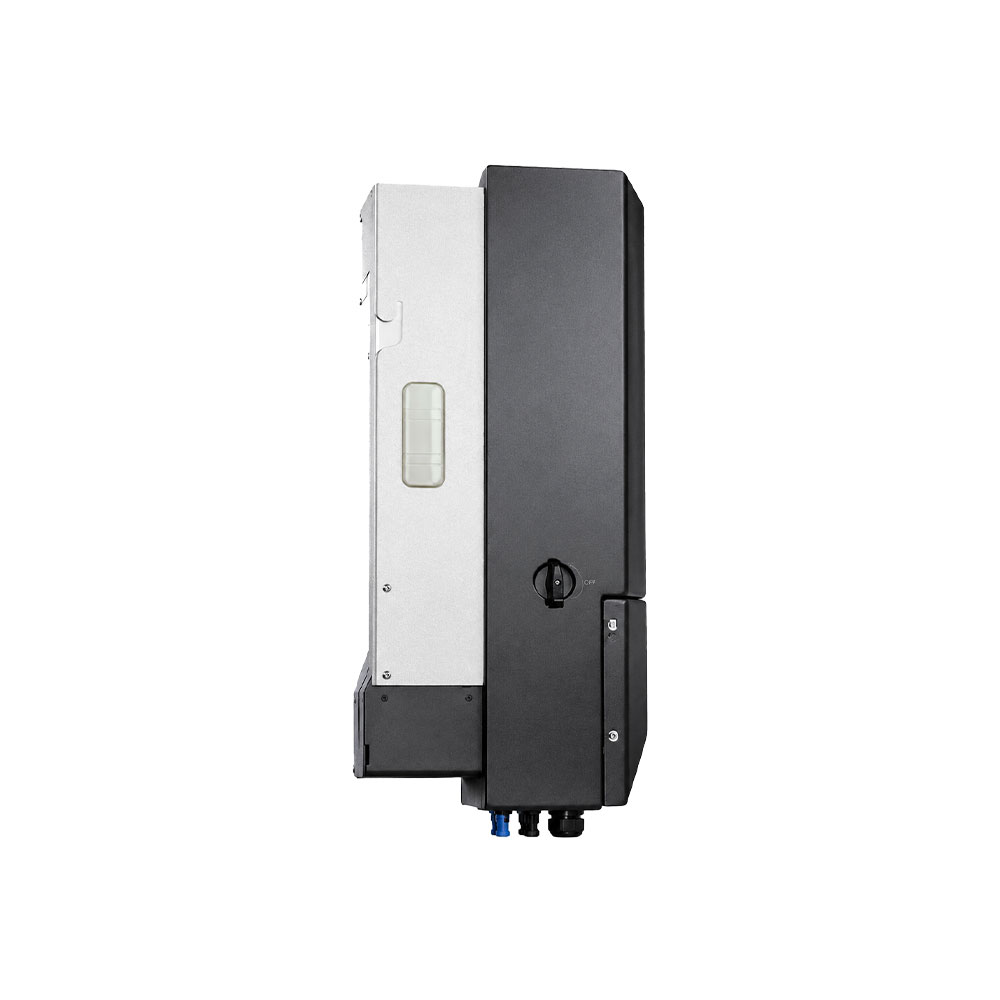

Photo 1 of 7

Official CoreTECH NexGen product photographs. Confirm the exact stock variant before ordering.

Coretech / Inverters

Coretech 10kW IP66 Hybrid Inverter

10kW single-phase low-voltage hybrid reference with two MPPTs, a 40–60V battery input, IP66 enclosure and backup transfer below 4ms. Manufacturer reference: this NexGen model matches the listed power and IP66 rating. Confirm the exact stocked model and battery compatibility with AJ Solar before ordering.

PKR 278,000

Ask us for the current price and availability.

Buy Now on WhatsApp

Review your solar package →

We’ll check equipment compatibility before recommending your complete system.

Two MPPTs with independent PV inputs
210A maximum battery charge and discharge
IP66 enclosure and smart fan cooling
Backup switching below 4ms
Dual outputs with smart-load management
Six programmable charge and discharge periods
Generator automatic start and stop
AC coupling and up to 16 parallel units

Product overview

Brand: Coretech
Model: CT NexGEN 10kW Hybrid-SP PV20000 · manufacturer reference
Capacity: 10 kW
System type: Hybrid
Warranty: Confirm with AJ Solar
Availability: Confirm on WhatsApp

Make it a complete solution.

Add this product to your package and tell us about your property. We can help with load assessment, system design, installation and ongoing support.

Specifications are taken from the manufacturer’s product information for the model shown. Your quotation will confirm the supplied configuration, compatible equipment and local warranty coverage.

Download datasheet (PDF)Manufacturer information ↗

ENGINEERING DETAILS

Technical specifications

CT NexGEN 10kW Hybrid-SP PV20000 · manufacturer reference · Select a section to view its specifications.

System

Phase: Single phase
Inverter type: Hybrid, low-voltage battery
Manufacturer reference model: CT NexGEN 10kW Hybrid-SP PV20000

PV input

Maximum PV access power: 20,000 W
Maximum PV input power: 15 kW
Maximum input voltage: 550 V
Rated PV input voltage: 360 V
Start-up voltage: 60 V
MPPT voltage range: 90–450 V
Maximum PV input current: 32 / 32 A
Maximum short-circuit current: 40 / 40 A
MPPTs / maximum input strings: 2 / 4

Battery

Battery types: Lead-acid or Li-ion
Rated battery voltage: 48 V
Battery voltage range: 40–60 V
Maximum charge / discharge current: 210 / 210 A
Battery communication: CAN / RS485
Li-ion charging strategy: Self-adaption to BMS

AC output

Rated output power: 10 kW
Maximum apparent output power: 11 kVA
Rated output voltage / connection: 220 / 230 V, L / N / PE
Output voltage range: 160–300 V
Rated output frequency / range: 50 / 60 Hz (±5 Hz)
Rated output current: 43.5 A
Maximum output current: 47.8 A
Power factor: >0.99; adjustable 0.8 leading to 0.8 lagging
THDi: <3%

AC input

Rated input power: 10 kW
Maximum input power: 11.5 kW
Rated input voltage / connection: 220 / 230 V, L / N / PE
Rated input frequency: 50 / 60 Hz
Maximum input current: 50 A

Backup output

Rated output power: 10 kW
Peak output power: 2 × rated power for 10 seconds
Rated output voltage / connection: 220 / 230 V, L / N / PE
Rated output frequency: 50 / 60 Hz
Backup switching time: <4 ms
THDv: <3%

Efficiency

MPPT efficiency: 99.80%
Maximum efficiency: 97.70%
European efficiency: 96.70%
Maximum battery charge / discharge efficiency: 95.3% / 93.9%

Protection

Integrated DC switch: Yes
DC reverse-polarity protection: Yes
Insulation impedance detection: Yes
Residual leakage current detection: Yes
Ground-fault monitoring: Yes
Short-circuit protection: Yes
Anti-islanding protection: Yes
DC / AC surge protection: Type II / Type II
DC arc-fault circuit protection: Optional
I/V curve scanning: Yes
Maximum parallel inverters: 16

General

Operating temperature: −40 to +60°C
Maximum altitude: 4,000 m; derating above 3,000 m
Relative humidity: 0–100%

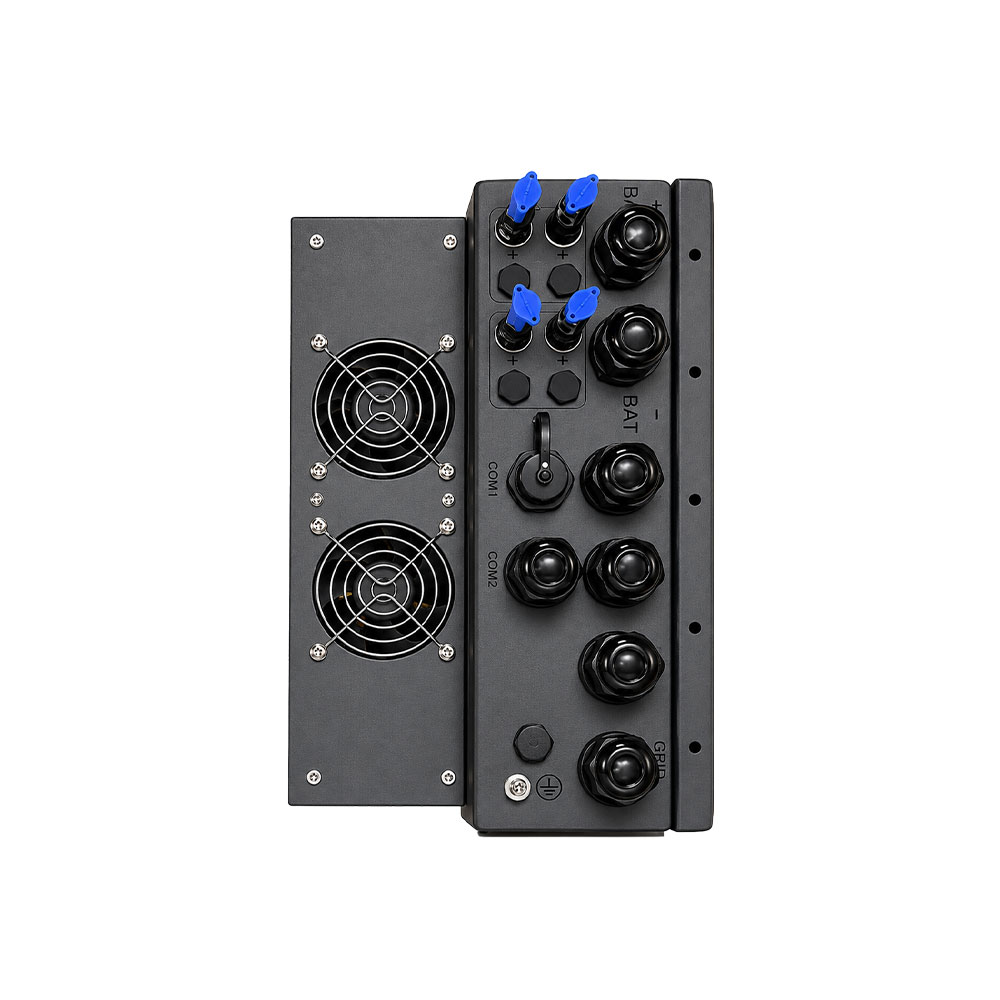

Cooling: Smart fan cooling
Ingress protection: IP66
Topology: Transformerless
Night self-consumption: ≤20 W
Dimensions (W × H × D): 350 × 620 × 260 mm
Weight: 28 kg
PV terminal: MC4 connector
Grid-side terminal: Terminal
Manufacturer warranty listing: 10 years*; terms and AJ Solar coverage require confirmation
