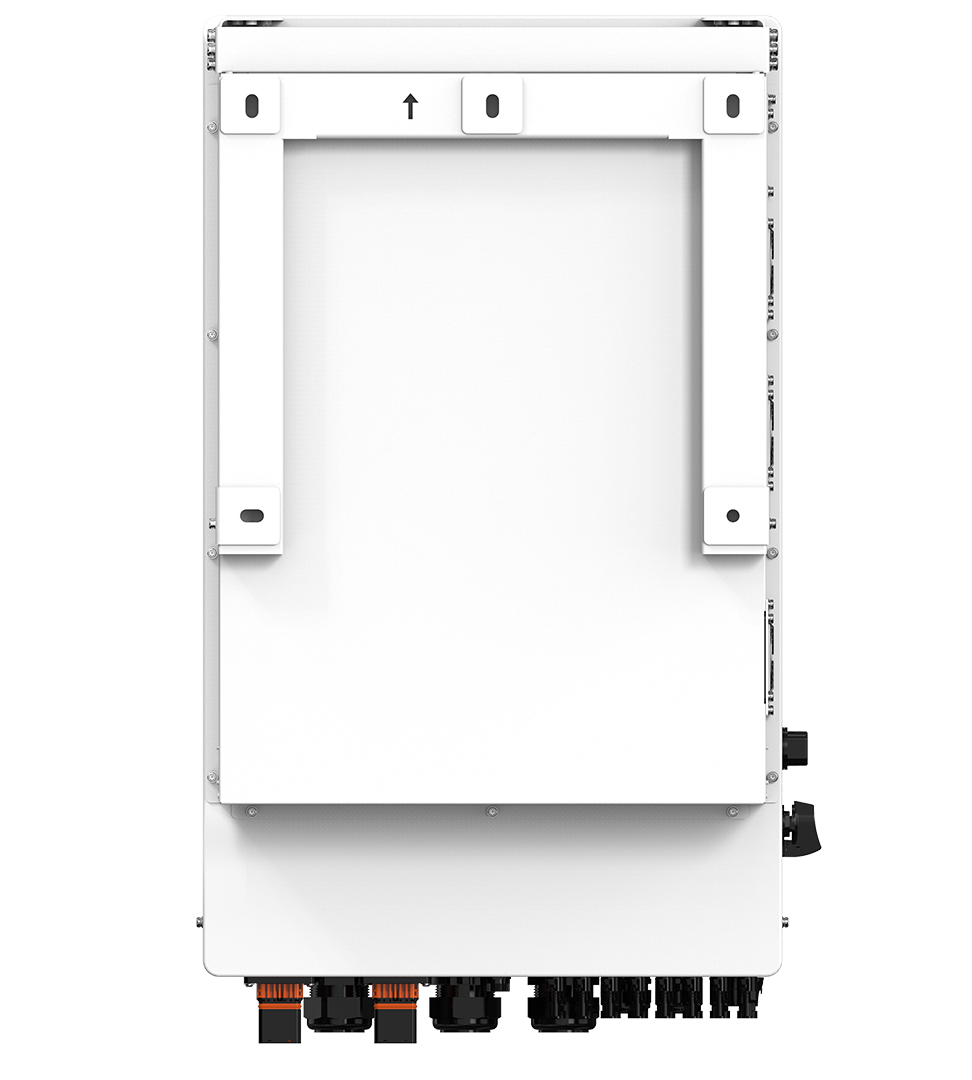

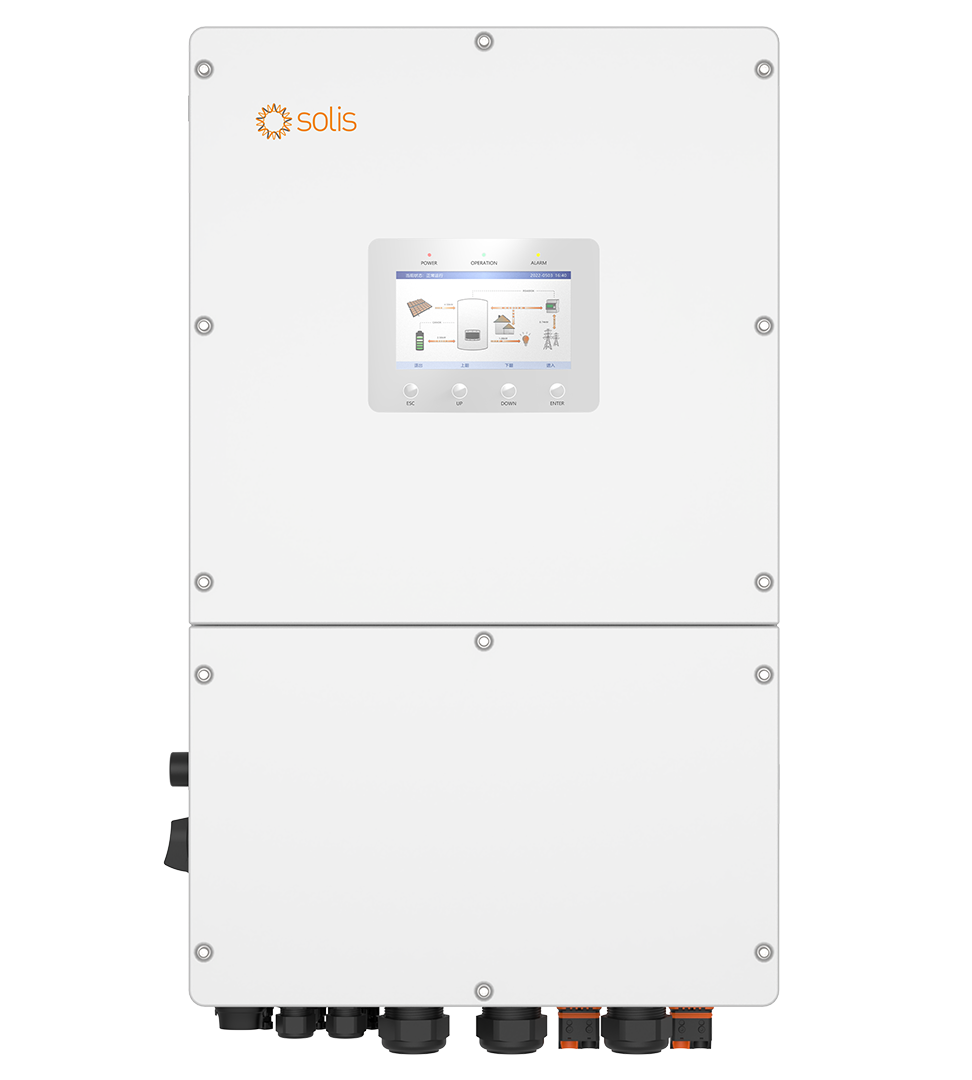

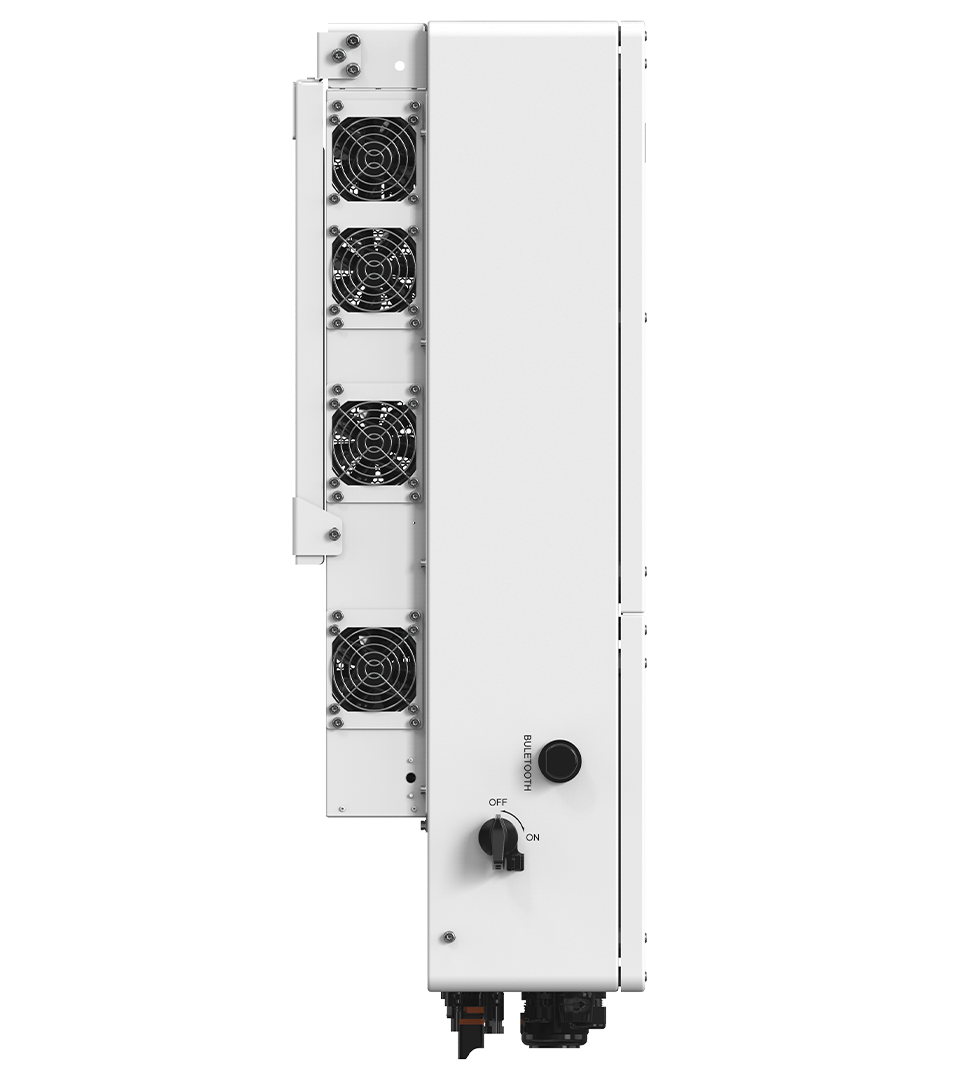

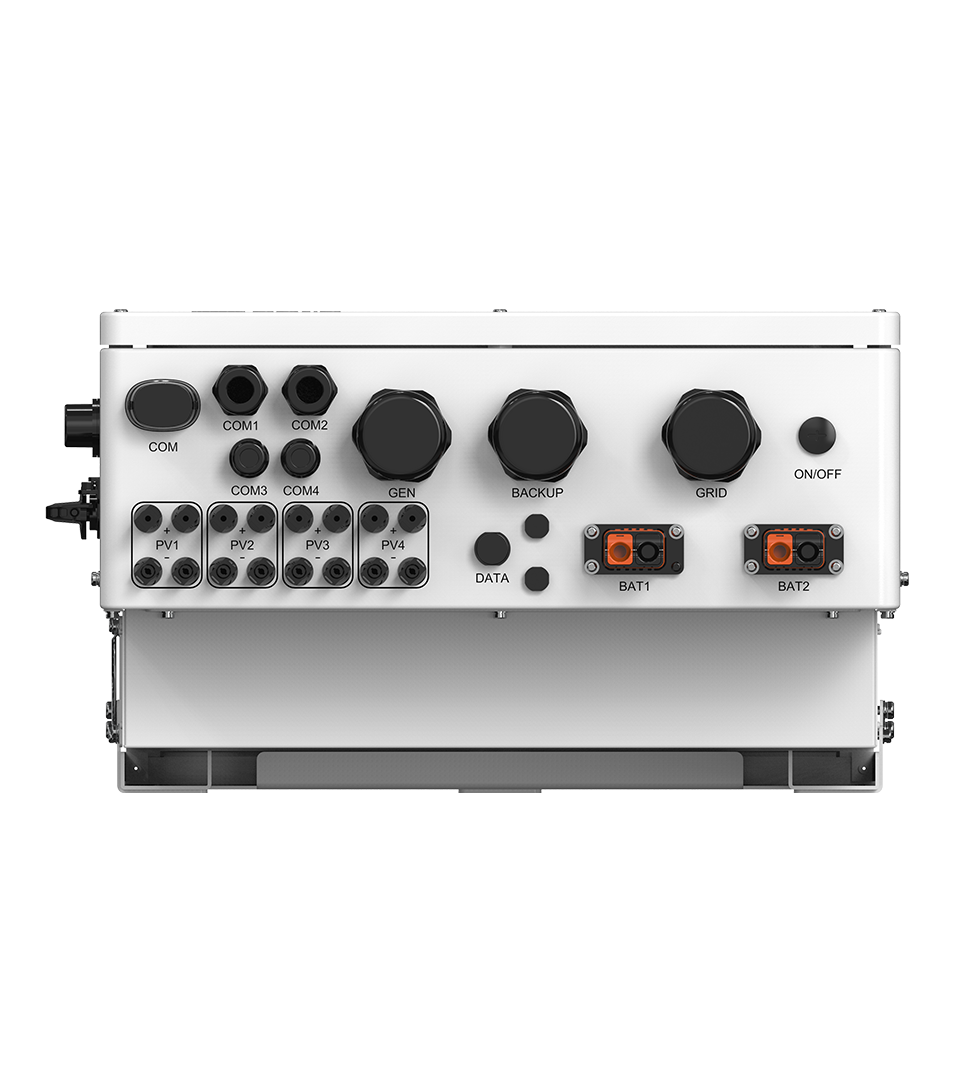

Official Solis series photos. Casing and connection layouts can vary by model.Back to productsENGINEERING DETAILS Official Solis series photos. Casing and connection layouts can vary by model. Official Solis series photos. Casing and connection layouts can vary by model. Official Solis series photos. Casing and connection layouts can vary by model.
Official Solis series photos. Casing and connection layouts can vary by model.
Photo 1 of 5
Official Solis series photos. Casing and connection layouts can vary by model.
Solis / Inverters
Solis 30kW 3-Phase HV Hybrid Inverter
30kW three-phase hybrid inverter for solar generation, high-voltage battery storage and backup power. S6-EH3P30K-H supports generator integration and flexible energy management.
PKR 1,135,000Ask us for the current price and availability.
Review your solar package →We’ll check equipment compatibility before recommending your complete system.
- Two independent battery connections
- 100–280 Ah compatible battery-module range
- Generator operation from 20% to 100% of inverter rating
- AC and DC coupling
- Smart load priority and battery reserve settings
- PV, wind or generator integration through the shared interface
- SolisCloud control and energy optimisation
- 7-inch LCD and Bluetooth app setup
- Parallel systems up to 500 kW; Solis STS cabinet recommended above six units
Product overview
- Brand
- Solis
- Model
- S6-EH3P30K-H
- Capacity
- 30 kW
- System type
- Hybrid
- Warranty
- 5 years replacement warranty
- Availability
- Confirm on WhatsApp
Make it a complete solution.
Add this product to your package and tell us about your property. We can help with load assessment, system design, installation and ongoing support.
Specifications are taken from the manufacturer’s product information for the model shown. Your quotation will confirm the supplied configuration, compatible equipment and local warranty coverage.
Technical specifications
S6-EH3P30K-H · Select a section to view its specifications.
Solar / PV input
- Recommended max. PV array size
- 60 kW
- Max. usable PV input power
- 60 kW
- Max. input voltage
- 1000 V
- Rated voltage
- 600 V
- Start-up voltage
- 180 V
- MPPT voltage range
- 150 - 850 V
- Max. input current
- 40 A / 40 A / 40 A
- Max. short circuit current
- 60 A / 60 A / 60 A
- MPPT number / Max. input strings number
- 3 / 6
Battery storage
- Battery type
- Li-ion
- Battery voltage range
- 150 - 800 V
- Max. charge / discharge power
- 33 kW
- Max. charge / discharge current
- 70 A × 2 ①
- Number of battery ports
- 2
- Max. charge / discharge power of each input
- 33 kW
- Communication
- CAN / RS485
Grid output
- Rated output power
- 30 kW
- Max. apparent output power
- 30 kVA
- Rated grid voltage
- 3/N/PE, 220 V / 380 V, 230 V / 400 V
- Rated grid frequency
- 50 Hz / 60 Hz
- Rated grid output current
- 45.6 A / 43.3 A
- Max. output current
- 45.6 A / 43.3 A
- Power factor
- > 0.99 (0.8 leading - 0.8 lagging)
- THDi
- < 3%
Grid input
- Max. AC passthrough current
- 91.2 A / 86.6 A
- Rated input voltage
- 3/N/PE, 220 V / 380 V, 230 V / 400 V
- Rated input frequency
- 50 Hz / 60 Hz
Generator input
- Max. input power
- 30 kW
- Rated input current
- 45.6 A / 43.3 A
- Rated input voltage
- 3/N/PE, 220 V / 380 V, 230 V / 400 V
- Rated input frequency
- 50 Hz / 60 Hz
Backup output
- Rated output power
- 30 kW
- Max. apparent output power
- 1.6 times of rated power, 2 s
- Back-up switch time
- < 10 ms
- Rated output voltage
- 3/N/PE, 220 V / 380 V, 230 V / 400 V
- Rated frequency
- 50 Hz / 60 Hz
- Rated output current
- 45.6 A / 43.3 A
- THDv (@linear load)
- < 2%
Efficiency
- Max. efficiency
- 97.8%
- EU efficiency
- 97.4%
- BAT charged by PV max. efficiency
- 98.5%
- BAT charged / discharged to AC max. efficiency
- 97.5%
Protection
- Anti-islanding protection
- Yes
- Output over current protection
- Yes
- Short circuit protection
- Yes
- Integrated DC switch
- Yes
- DC reverse-polarity protection
- Yes
- Surge protection
- DC Type II / AC Type II
- Integrated AFCI 2.0
- Optional
Physical and environmental
- Dimensions (W × H × D)
- 530 × 880 × 290 mm
- Weight
- 73 kg
- Topology
- Transformerless
- Self-consumption (night)
- < 35 W
- Operating ambient temperature range
- -25 ~ +60°C
- Relative humidity
- 0 - 100%
- Ingress protection
- IP66
- Cooling concept
- Intelligent fan-cooling
- Max. operation altitude
- 4000 m
- Grid connection standard
- G99; VDE-AR-N 4105 / VDE V 0124; EN 50549-1 / EN 50549-10; VDE 0126 / UTE C 15 / VFR:2019; NTS 631 / RD 1699 / RD 244 / UNE 206006 / UNE 206007-1; CEI 0-21; C10/11; NRS 097-2-1; TOR; EIFS 2018.2; IEC 62116; IEC 61727; IEC 60068; IEC 61683; EN 50530; MEA; PEA; PORTARIA No. 140 (21 March 2022)
- Safety / EMC standard
- IEC/EN 62109-1/-2, IEC/EN 61000-6-2/-4, EN 55011
Connections and communications
- PV connection
- MC4 Quick connection plug
- Battery connection
- Terminal connector
- AC connection
- Terminal Block
- Display
- 7.0" LCD display & Bluetooth + APP
- Communication
- CAN, RS485, Ethernet, Optional: Wi-Fi, Cellular, LAN
Manufacturer documents
Original Solis documents for this series. Check the model and regional approval on each document.
Installation and user manuals (2)
Certifications (12)
- Type A-S6-EH3P(29.9-50)K-H(Applicable in Switzerland)
- CE S6-EH3P(29,9-50)K-H
- Solis certificate TOR R25 S6-EH3P(29,9-50)K-H(-H-ND) S6-EH3P30K-H-LV S6-EH3P(20-30)K-H-LV-ND Austria V02
- Solis certificate C 10-11 S6-EH3P(29,9-50)K-H(-H-ND) S6-EH3P30K-H-LV Belgium V01
- Solis certificate DEWA S6-EH3P(29,9-50)K-H(-H-ND) Dubai V01
- Solis certificate EN 50549-1 EN 50549-10 S6-EH3P(29,9-50)K-H(-H-ND) S6-EH3P30K-H-LV S6-EH3P(15-30)K-H-LV-ND EUR V01
- Solis certificate EN 50549-2 EN 50549-10 S6-EH3P(29,9-50)K-H(-H-ND) S6-EH3P30K-H-LV S6-EH3P(15-30)K-H-LV-ND EUR V01
- Solis certificate IEC EN 62477-1 S6-EH3P(29,9-50)K-H S6-EH3P30K-H-LV safety V01
- Solis certificate IEC EN 62109-1(-2) S6-EH3P(29,9-50)K-H(-ND) S6-EH3P30K-H-LV S6-EH3P(15-30)K-H-LV-ND safety V03
- Solis certificate EN IEC 61000-6-2(-4) EN 55011 EN 62920 EN 301489 EN 62109 EN 300328 EN 50663 EN 62479 S6-EH3P(29,9-60)K-H(-H-ND)(21A) S6-EH3P(15-35)K-H-LV(-ND)(21A) RED V05
- Solis certificate IEC 61000-6-2(-4) IEC 61000-3-2(-3)(-11)(-12) IEC 62920 S6-EH3P(29,9-60)K-H(-H-ND)(-H-AU)(-H-ND-AU)(21A) S6-EH3P(15-35)K-H-LV-ND(21A) S6-EH3P(15-35)K-H-LV(21A) EMC V06
- Solis certificate EN 62109-1(-2) S6-EH3P(29,9-50)K-H(-ND) S6-EH3P30K-H-LV S6-EH3P(15-30)K-H-LV-ND safety V03
Battery compatibility (1)
