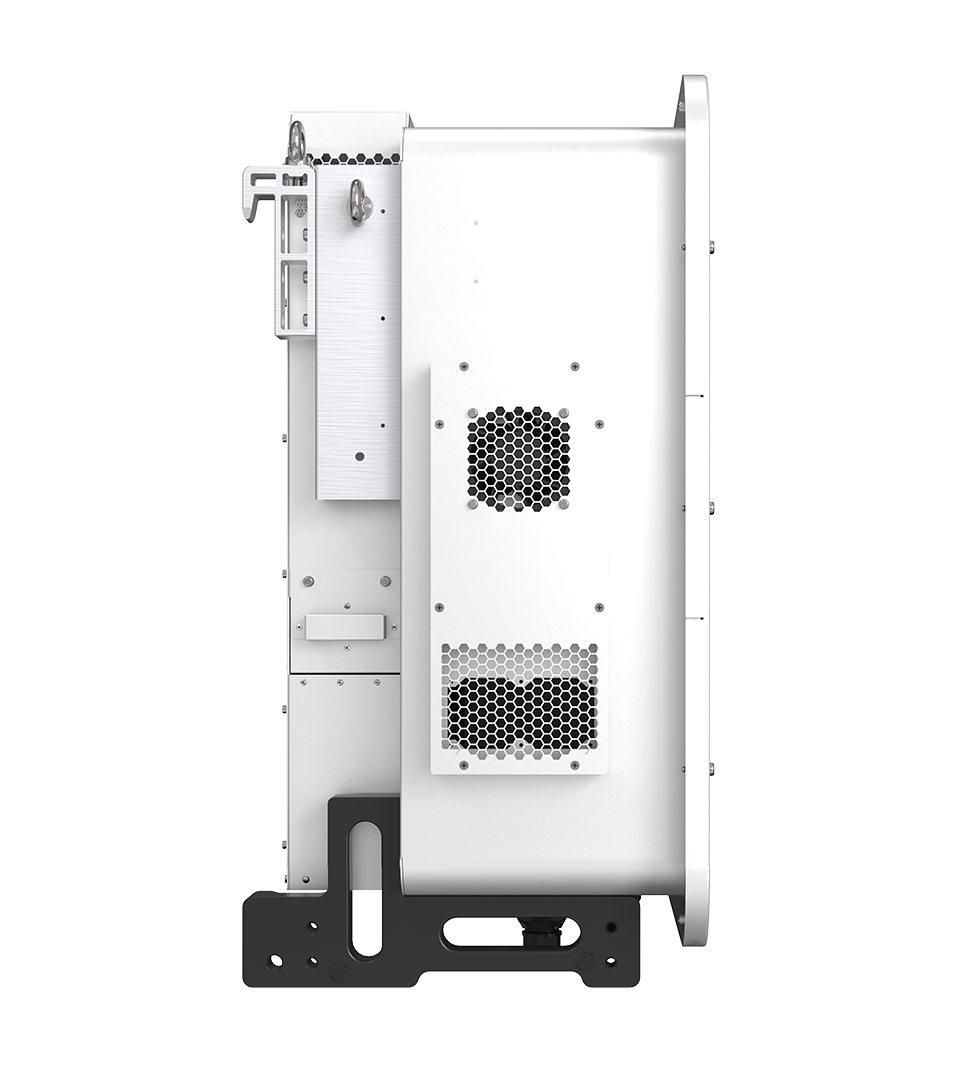

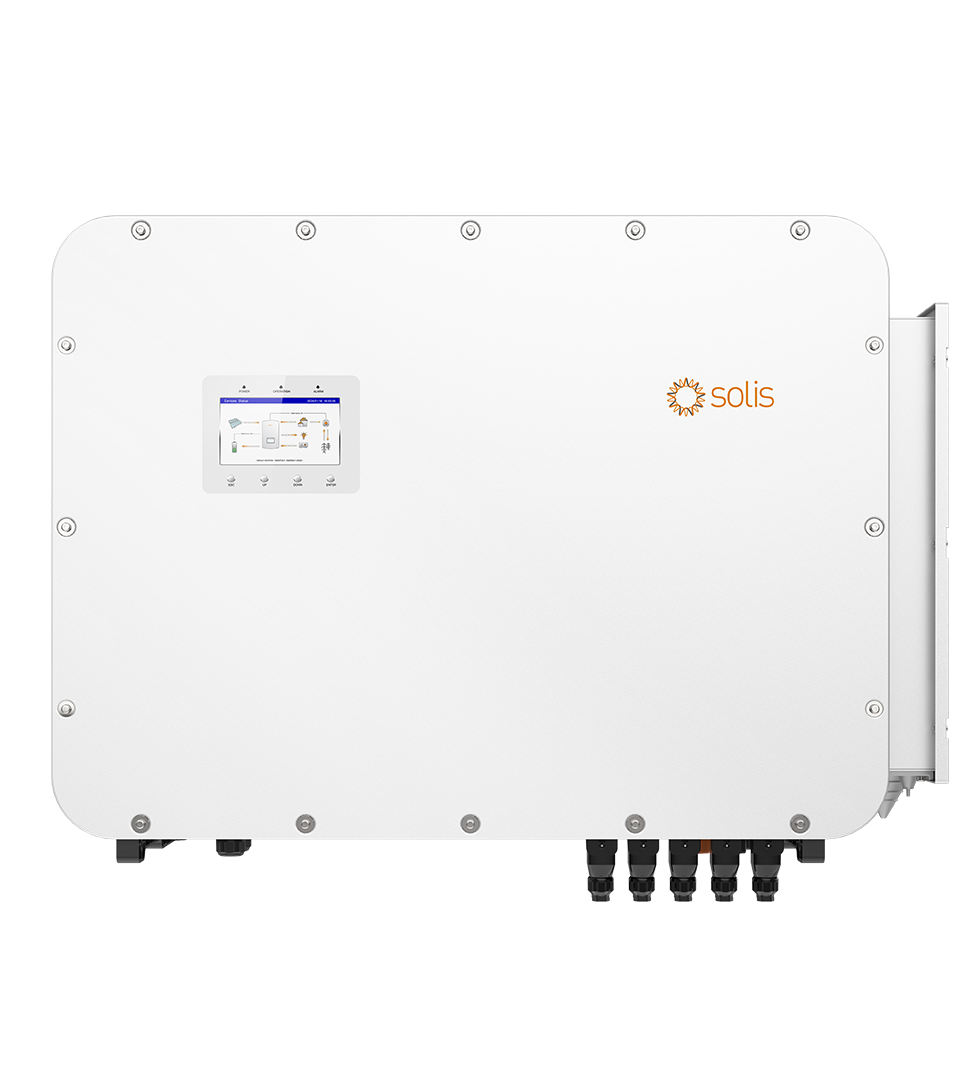

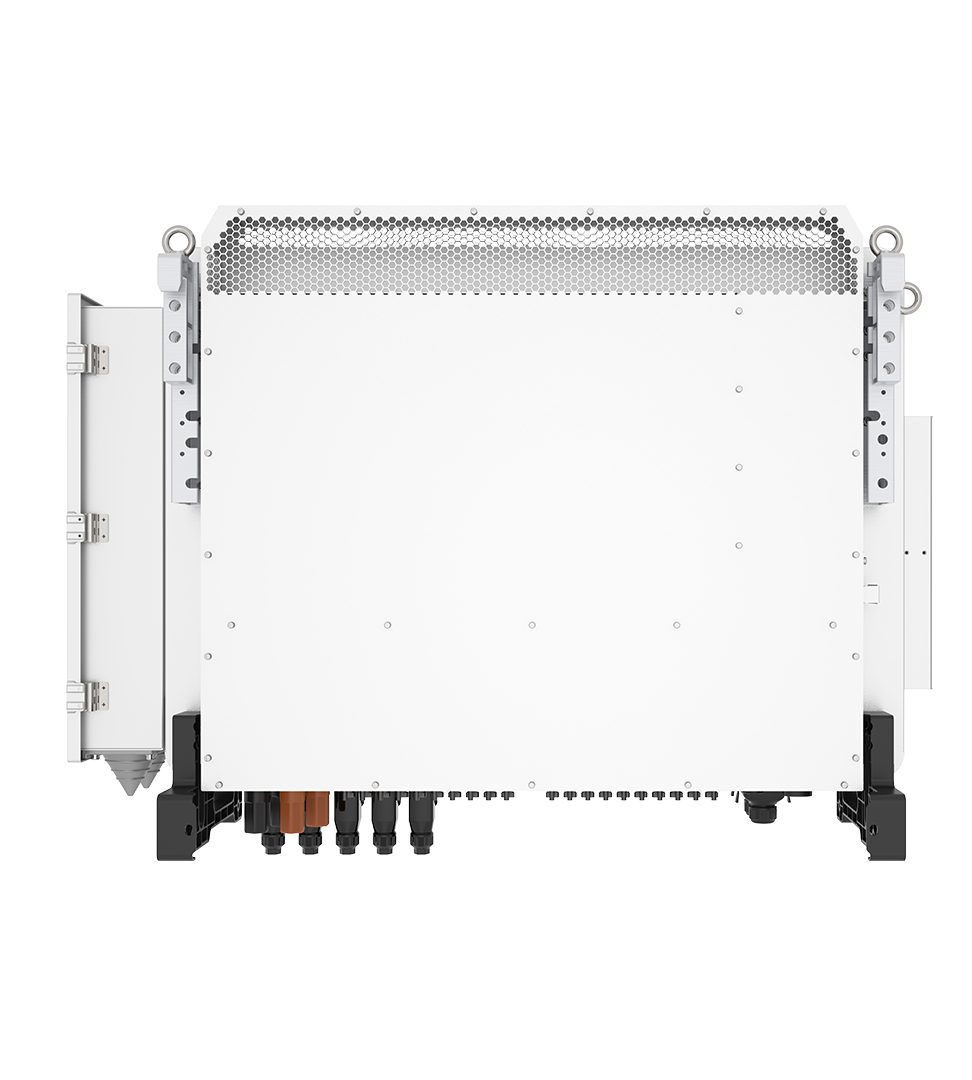

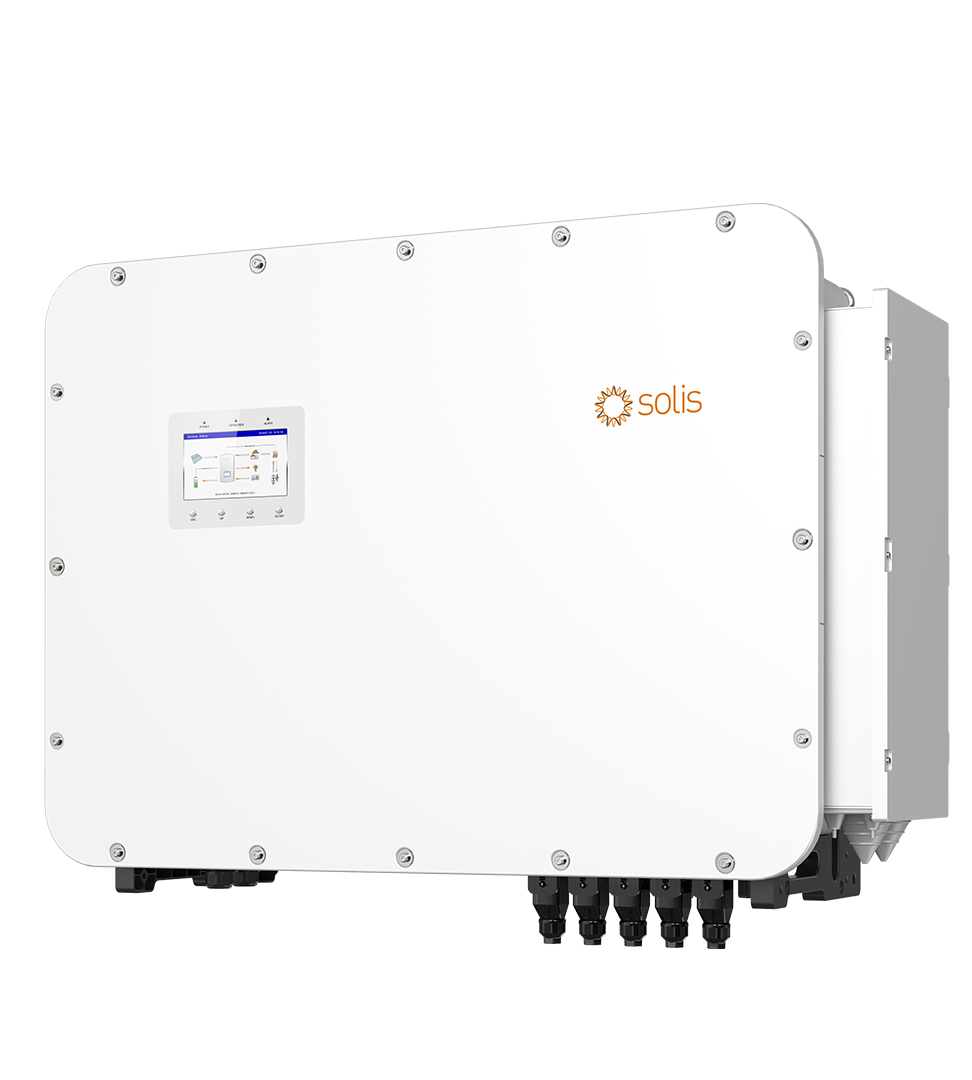

Official Solis series photos. Casing and connection layouts can vary by model.Back to productsENGINEERING DETAILS Official Solis series photos. Casing and connection layouts can vary by model. Official Solis series photos. Casing and connection layouts can vary by model. Official Solis series photos. Casing and connection layouts can vary by model.
Official Solis series photos. Casing and connection layouts can vary by model.
Photo 1 of 6
Official Solis series photos. Casing and connection layouts can vary by model.
Solis / Inverters
Solis 80kW 3-Phase HV Hybrid Inverter
80kW three-phase hybrid inverter for solar generation, high-voltage battery storage and backup power. S6-EH3P80K10-NV-YD-H supports generator integration and flexible energy management.
Contact for PriceAsk us for the current price and availability.
Review your solar package →We’ll check equipment compatibility before recommending your complete system.
- Two independent battery connections
- 100–314 Ah compatible battery-module range
- AC and DC coupling
- Weak-grid and generator-hybrid controls
- Demand management and export limiting
- Dynamic reactive-power compensation
- Grid bypass for backup loads
- Smart load priority and battery reserve settings
- PV, wind or generator integration through the shared interface
- SolisCloud monitoring and control
- Parallel systems up to 1.25 MW; Solis STS cabinet recommended above six units
Product overview
- Brand
- Solis
- Model
- S6-EH3P80K10-NV-YD-H
- Capacity
- 80 kW
- System type
- Hybrid
- Warranty
- 5 years replacement warranty
- Availability
- Confirm on WhatsApp
Make it a complete solution.
Add this product to your package and tell us about your property. We can help with load assessment, system design, installation and ongoing support.
Specifications are taken from the manufacturer’s product information for the model shown. Your quotation will confirm the supplied configuration, compatible equipment and local warranty coverage.
Technical specifications
S6-EH3P80K10-NV-YD-H · Select a section to view its specifications.
Solar / PV input
- Recommended max. PV array size
- 160 kW
- Max. usable PV input power
- 160 kW
- Max. input voltage
- 1000 V
- Rated voltage
- 600 V
- Start-up voltage
- 180 V
- MPPT voltage range
- 150 - 950 V
- Max. input current
- 10 × 42 A
- Max. current per DC input
- 42 A (datasheet; see model notes)
- Max. short circuit current
- 10 × 60 A
- MPPT number / Max. input strings number
- 10 / 20
Battery storage
- Battery type
- Li-ion
- Battery voltage range
- 300 - 950 V
- Max. charge / discharge current
- 100 A × 2 / 100 A × 2
- Number of battery port / Number of BMS port
- 2
- Max. charge / discharge current of each port
- 100 A
- Communication
- CAN
Grid output
- Rated output power
- 80 kW
- Max. apparent output power
- 80 kVA
- Rated grid voltage
- 3/N/PE, 220 V / 380 V, 230 V / 400 V
- Rated grid frequency
- 50 Hz / 60 Hz
- Rated grid output current
- 121.6 A / 115.5 A
- Power factor
- > 0.99 (0.8 leading - 0.8 lagging)
- THDi
- < 3%
Grid input
- Max. input power
- 160 kW
- Input voltage range
- 304 - 460 V
- Max. input current
- 250 A
Backup output
- Rated output power
- 80 kW
- Max. apparent output power
- 1.6 × rated power for 10 s; 2 × for 200 ms
- Back-up switch time
- < 10 ms
- Rated output voltage
- 3/N/PE, 220 V / 380 V, 230 V / 400 V
- Rated frequency
- 50 Hz / 60 Hz
- Rated output current
- 121.6 A / 115.5 A
- Max. AC passthrough current
- 121.6 A / 115.5 A
- THDv (@linear load)
- < 3%
Generator input
- Max. input power
- 80 kW
- Rated input current
- 121.6 A / 115.5 A
- Rated input voltage
- 3/N/PE, 220 V / 380 V, 230 V / 400 V
- Rated input frequency
- 50 Hz / 60 Hz
Efficiency
- Max. efficiency
- 97.5%
- EU efficiency
- 96.9%
- BAT charged by PV / AC max. efficiency
- 98.2% /97.0%
- Battery discharged efficiency
- 97.0%
Protection
- Surge protection
- DC Type II / AC Type II
- Output over current protection
- Yes
- Insulation resistance monitoring
- Yes
- Residual current detection
- Yes
- Integrated PV switch
- Yes
- DC reverse-polarity protection
- Yes
- Protection class / Over voltage category
- I/ DC II, AC III
- Integrated AFCI 2.0
- Optional (Brazil: Yes)
- Anti-islanding protection
- Yes
Physical and environmental
- Max. power per phase (grid & back-up)
- 33% rated power
- Dimensions (W × H × D)
- 1174 × 814 × 400 mm
- Weight
- 170 kg
- Inverter topology
- Non-isolated
- Self-consumption
- < 45 W
- Operating temperature range
- -25 ~ +60°C
- Relative humidity
- 0 - 100%
- Ingress protection
- IP66
- Cooling concept
- Intelligent redundant fan-cooling
- Max. operation altitude
- 3000 m
- Grid connection standard
- G99, VDE-AR-N 4105/VDE V 0124, EN 50549-1&2/EN 50549-10, VDE 0126/UTE C 15/VFR:2019, NTS 631/UNE 217001, CEI 0-21, C10/11, NRS 097-2-1, TOR, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530, MEA, PEA, PORTARIA Nº 140, PORTARIA Nº 515
- Safety / EMC standard
- IEC/EN 62109-1/-2, IEC/EN 61000-6-2/-4, EN 55011

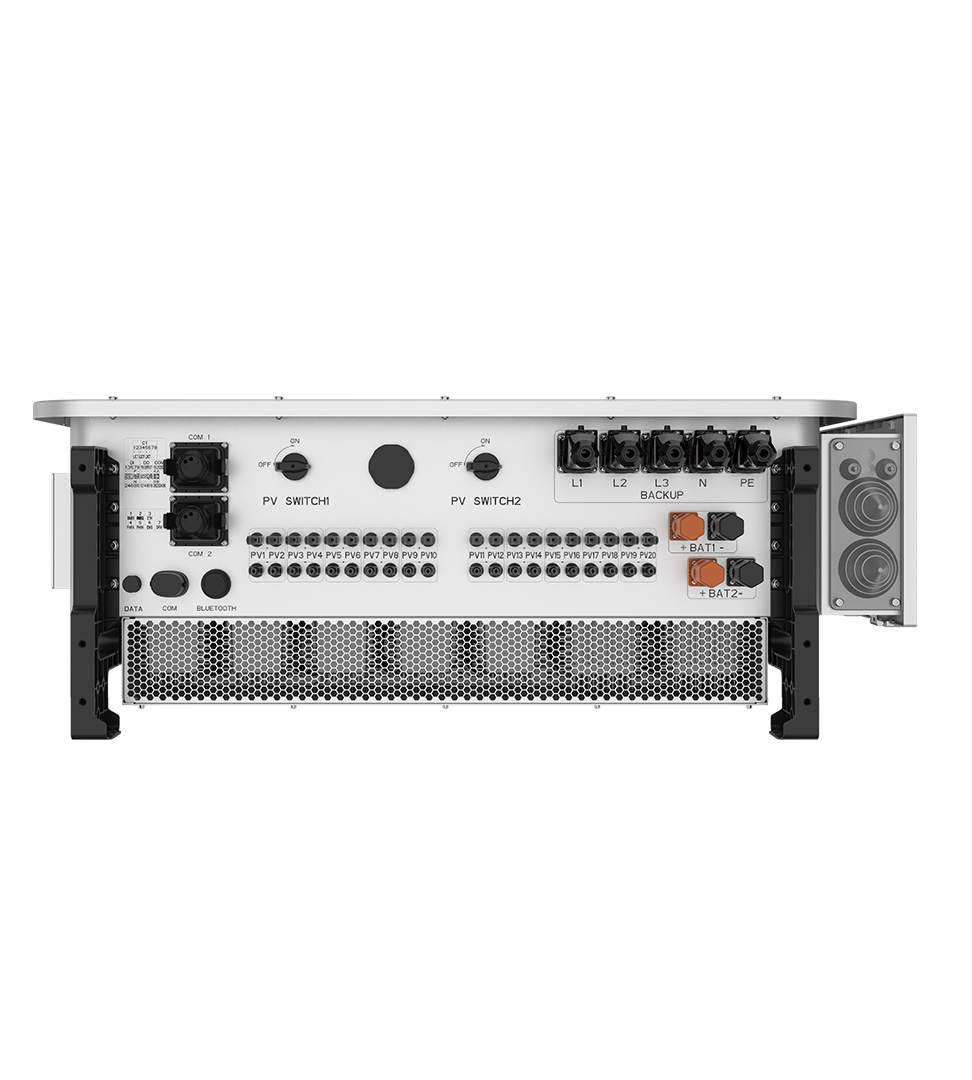

Connections and communications
- PV connection
- MC4 connector
- Battery connection
- Terminal connector
- AC connection
- Terminal block
- Display
- 7.0" LCD display & Bluetooth + APP
- Communication interface
- Standard: WIFI+LAN+Bluetooth, CAN-BMS×2, CAN-Parallel×2, LAN, RS485-Meter, RS485, DRM, DI×5, DO×4; Optional: 4G
Manufacturer documents
Original Solis documents for this series. Check the model and regional approval on each document.
Installation and user manuals (1)
Certifications (5)
- Solis certificate EN IEC 61000-6 EN 62920 EN 55011 EN 301489 EN 300328 EN 62479 EN 50663 EN 62109 EN18031 S6-EH3P(75-125)K10-NV-YD-H(-ND-H) S6-EH3P(60-75)K10-LV-YD-H(-ND-H) EMC
- Solis certificate IEC 61000-6-2(-4) IEC 62920 IEC(TS) 61000-3-2(-3)(-11)(-12)(-4)(-5) S6-EH3P(75-125)K10-NV-YD-H(-ND-H)(-H-AU) S6-EH3P(60-75)K10-LV-YD-H(-ND-H) EMC V04
- Solis certificate IEC EN 62109-1(-2) S6-EH3P(75-125)K10-NV-YD-H(-ND-H) S6-EH3P(60-75)K10-LV-YD-H(-ND-H) Safety V03
- Solis certificate EN 62109-1(-2) S6-EH3P(75-125)K10-NV-YD-H(-ND-H) S6-EH3P(60-75)K10-LV-YD-H(-ND-H) Safety V03
- Solis certificate EN 50549-1(-10) S6-EH3P(80-125)K10-NV-YD-H(-ND-H) S6-EH3P(60-75)K10-LV-YD-H(-ND-H) EUR V01(EN)
Battery compatibility (1)
