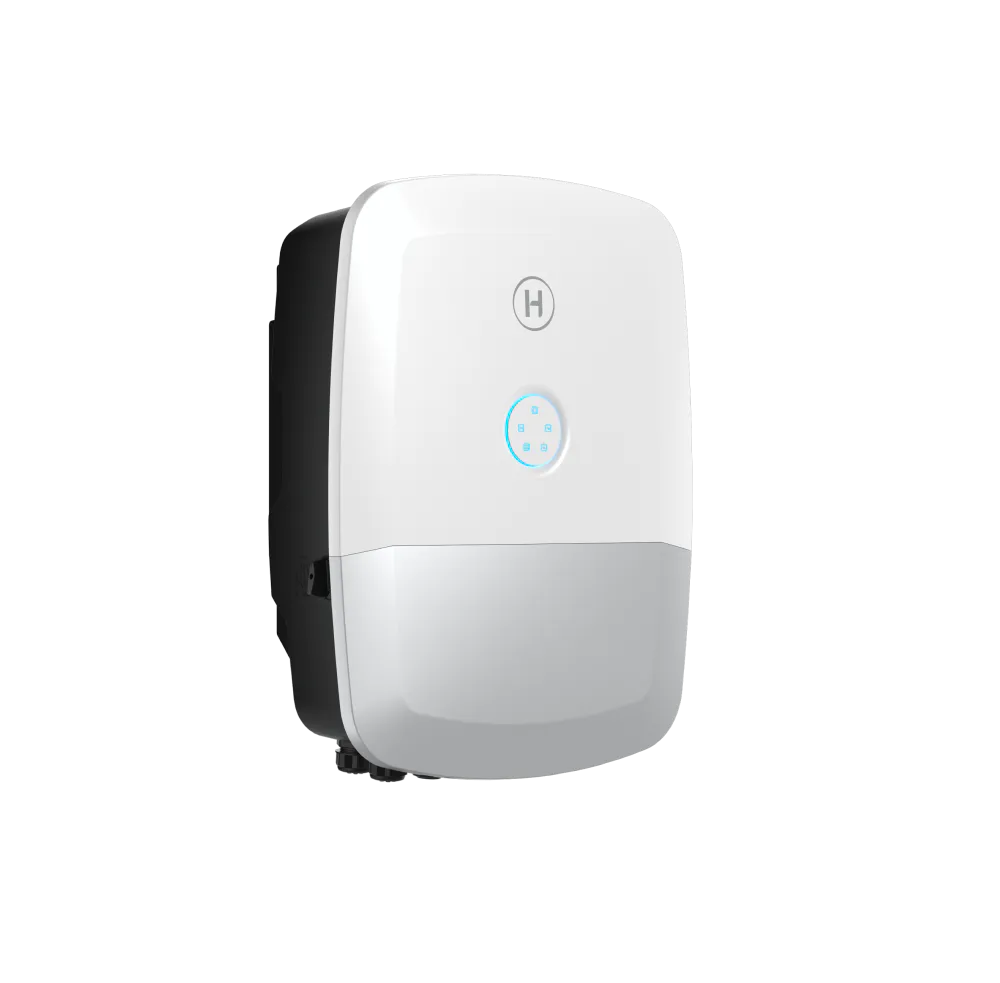

Official HIT G3 series photos; exact power-specific appearance and stocked LCD/LED option unconfirmed.
Photo 1 of 3

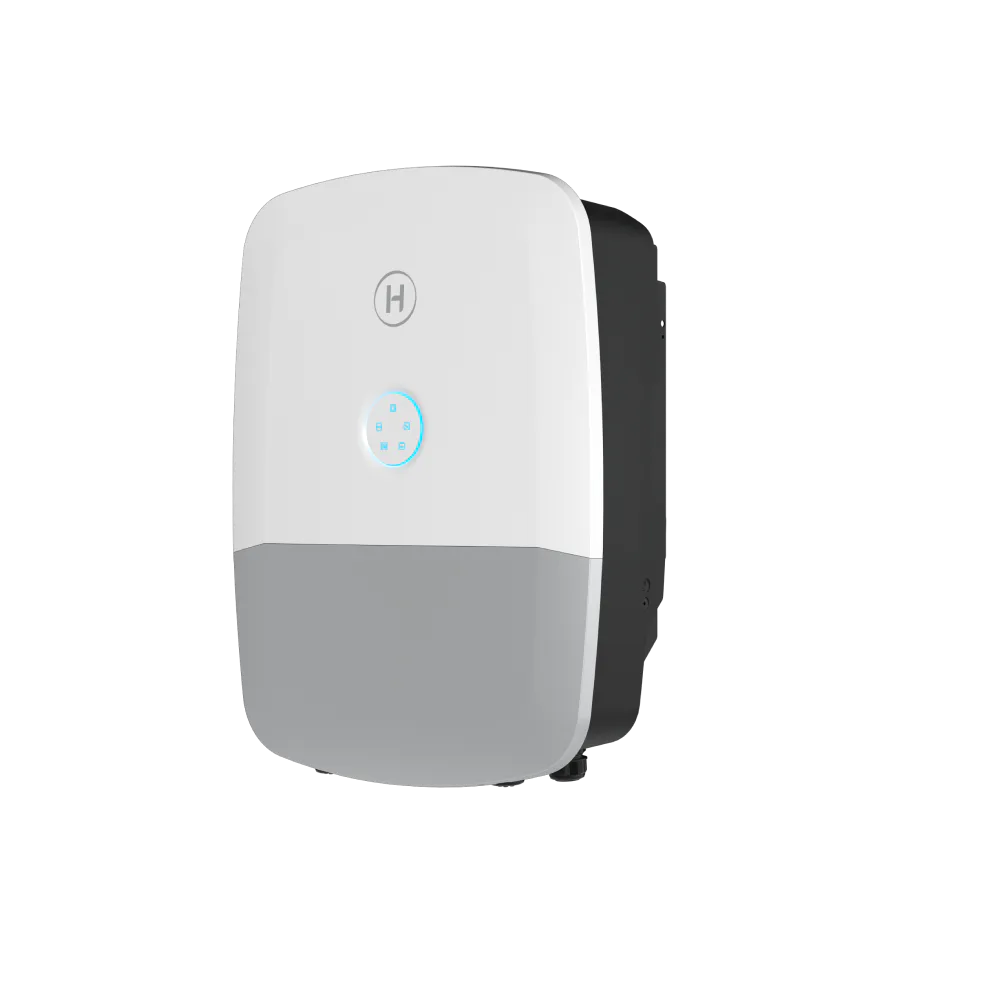

Official HIT G3 series photos; exact power-specific appearance and stocked LCD/LED option unconfirmed.
Hoymiles / Inverters
Hoymiles HIT 10kW 3-Phase Hybrid Inverter
10kW three-phase low-voltage hybrid manufacturer reference with 3 MPPTs, a 40–60V battery connection, 210A charge/discharge capability and IP66 protection. Manufacturer reference: the model below matches the listed capacity and product family, but AJ Solar has not confirmed the exact stocked model suffix, hardware generation or regional configuration. Verify the nameplate and battery compatibility before ordering.
PKR 465,000Ask us for the current price and availability.
Review your solar package →We’ll check equipment compatibility before recommending your complete system.
- 3 MPPTs, 20A per tracker
- 200% recommended PV oversizing
- 210A maximum charge / discharge current
- 100% unbalanced output; each phase up to 50% rated power
- Backup switching under 10ms
- Up to 10 parallel units; external contactor required for two or more
Product overview
- Brand
- Hoymiles
- Model
- HIT-10L-G3 · manufacturer reference
- Capacity
- 10 kW
- System type
- Hybrid
- Warranty
- Confirm with AJ Solar
- Availability
- Confirm on WhatsApp
Make it a complete solution.
Add this product to your package and tell us about your property. We can help with load assessment, system design, installation and ongoing support.
Specifications are taken from the manufacturer’s product information for the model shown. Your quotation will confirm the supplied configuration, compatible equipment and local warranty coverage.
Technical specifications
HIT-10L-G3 · manufacturer reference · Select a section to view its specifications.
System
- Phase
- Three phase
- Inverter type
- Hybrid, low-voltage battery
- Reference model
- HIT-10L-G3
- Series
- HIT G3 / G3S
Battery
- Battery type
- Li-ion / lead-acid
- Battery voltage range
- 40–60 V
- Maximum charge / discharge current
- 210 / 210 A
- Charging strategy for Li-ion battery
- Self-adaption to BMS
- Charging curve
- 3 stages / equalization
- External temperature sensor
- Optional
- Battery communication
- CAN
PV input
- Recommended maximum PV power
- 20,000 W
- Maximum input voltage
- 1,000 V
- Rated voltage
- 720 V
- Start-up voltage
- 150 V
- MPPT voltage range
- 150–900 V
- Maximum input current
- 20 / 20 / 20 A
- Maximum short-circuit current
- 30 / 30 / 30 A
- MPPT number / maximum input strings number
- 3 / 3
AC input and output (on-grid)
- Rated output power
- 10,000 W
- Maximum output apparent power (1)
- 11,000 VA
- Maximum continuous AC bypass current
- 50 A
- Grid form
- 3L / N / PE
- Rated AC output voltage / range
- 380 / 400 V; range 266–480 V
- Rated grid frequency
- 50 / 60 Hz
- Rated output current
- 15.2 A
- Maximum output current
- 16.7 A
- Power factor
- >0.99; adjustable 0.8 leading to 0.8 lagging
- THDi at rated output
- <3%
AC output (backup)
- Rated output power
- 10,000 W
- Maximum output apparent power (2)
- 20,000 VA for 10 s, with sufficient PV and battery power
- Backup switch time
- <10 ms
- Grid form
- 3L / N / PE
- Rated output voltage
- 380 / 400 V
- Rated output frequency
- 50 / 60 Hz
- Maximum continuous output current
- 15.2 A
- THDv at linear load
- <3%
Efficiency
- MPPT efficiency
- 99.9%
- Maximum efficiency
- 98.2%
- EU efficiency
- 97.6%
- Maximum battery discharge to AC efficiency
- 95.7%
Protection
- Anti-islanding protection
- Integrated
- PV string input reverse polarity protection
- Integrated
- Insulation resistor detection
- Integrated
- Residual current monitoring unit
- Integrated
- AC overcurrent protection
- Integrated
- AC short-circuit protection
- Integrated
- AC overvoltage and undervoltage protection
- Integrated
- AFCI
- Optional
- Surge protection
- DC Type II / AC Type II
General
- Dimensions (W × H × D) (3)
- 539 × 696 × 232 mm, excluding connectors and brackets
- Weight
- 41 kg
- Mounting
- Wall mounting
- Operating temperature
- −25 to +65°C; derating above 45°C
- Relative humidity
- 0–95%, no condensation
- Cooling
- Smart fan
- Topology (solar / battery)
- Transformerless / high-frequency isolation
- Altitude
- ≤4,000 m; derating above 2,000 m
- Protection degree
- IP66
- User interface
- App; G3 has LED indicators, G3S has LCD; stocked option unconfirmed
- Digital input / output
- DRM, 2 × DI, 2 × DO
- Communication
- RS485; Wi-Fi / Ethernet / 4G optional
Certifications and standards
- Grid connection standard
- EN 50549, PN-EN 50549, TOR Erzeuger Type A, VDE 4105, NF EN 0549, RD 647, UNE 217001 217002, SR EN 50549, G98, G99, RETIE, BIS, IEC 61727, IEC 62116, IEC 61683, IEC 60068, AS/NZS 4777.2:2020
- Safety / EMC standard
- IEC 62109-1/-2, EN 61000-6-1/-2/-3/-4
