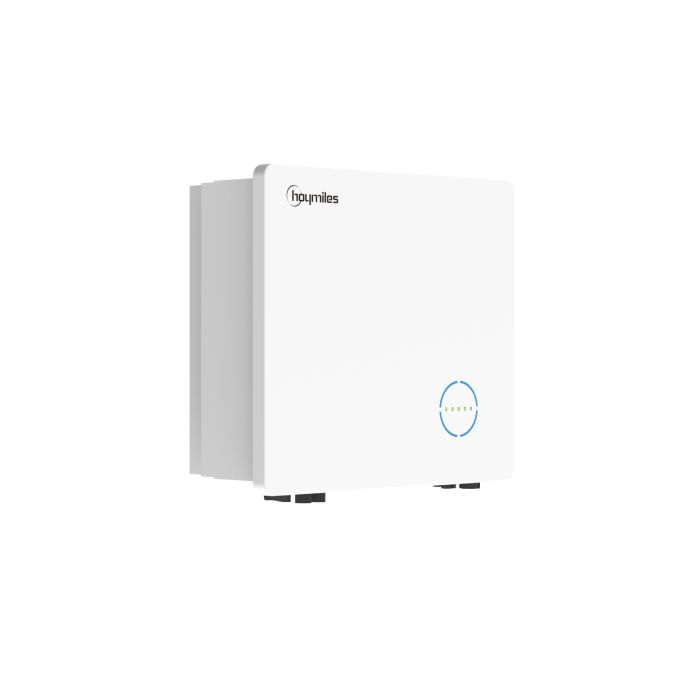

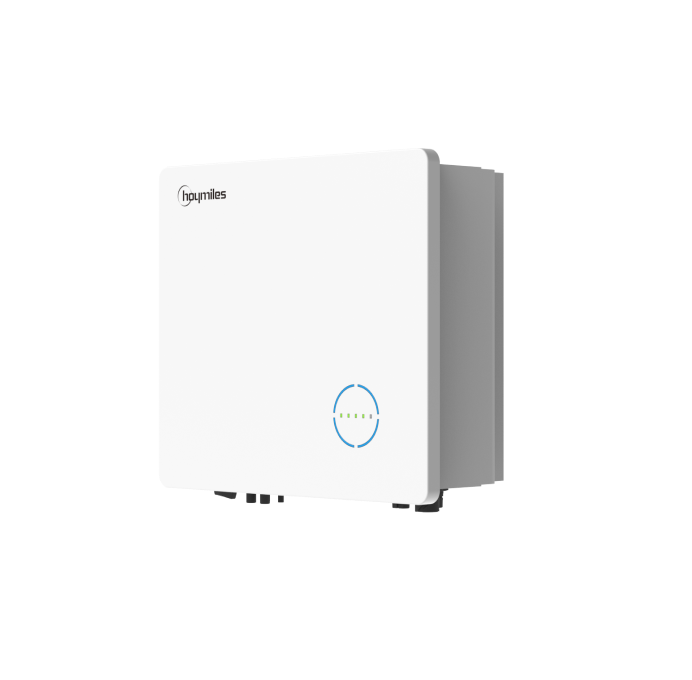

Official HYS-LV-EUG1 series product photos; exact stocked unit appearance unconfirmed.
Hoymiles / Inverters
Hoymiles HYS 6kW 1-Phase Without LCD Hybrid Inverter
6kW single-phase hybrid manufacturer reference with LED/App operation, a 40–60V battery connection, two MPPTs and backup transfer under 10ms. Manufacturer reference: the model below matches the listed capacity and product family, but AJ Solar has not confirmed the exact stocked model suffix, hardware generation or regional configuration. Verify the nameplate and battery compatibility before ordering.
PKR 172,000Ask us for the current price and availability.
Review your solar package →We’ll check equipment compatibility before recommending your complete system.
- Two MPPTs, 14A input per tracker
- 40–60V lithium-ion / lead-acid battery input
- 100A maximum charge / discharge current
- LED and App interface
- Backup switching under 10ms
- Up to 10 parallel inverters; verify installation requirements
Product overview
- Brand
- Hoymiles
- Model
- HYS-6.0LV-EUG1 · manufacturer reference
- Capacity
- 6 kW
- System type
- Hybrid
- Warranty
- Confirm with AJ Solar
- Availability
- Confirm on WhatsApp
Make it a complete solution.
Add this product to your package and tell us about your property. We can help with load assessment, system design, installation and ongoing support.
Specifications are taken from the manufacturer’s product information for the model shown. Your quotation will confirm the supplied configuration, compatible equipment and local warranty coverage.
Technical specifications
HYS-6.0LV-EUG1 · manufacturer reference · Select a section to view its specifications.
System
- Phase
- Single phase
- Inverter type
- Hybrid, low-voltage battery
- Reference model
- HYS-6.0LV-EUG1
- Series
- HYS-LV-EUG1
Battery
- Battery type
- Li-ion / lead-acid
- Battery voltage range
- 40–60 V
- Maximum charge / discharge current
- 100 / 100 A
- Maximum charge / discharge power
- 5,000 / 5,000 W
- Charging strategy for Li-ion battery
- Self-adaption to BMS
- Charging curve
- 3 stages / equalization
- External temperature sensor
- Optional
- Battery communication
- CAN
PV input
- Recommended maximum PV power
- 7,500 W
- Maximum input voltage
- 550 V
- Rated voltage
- 360 V
- Start-up voltage
- 150 V
- MPPT voltage range
- 125–500 V
- Maximum input current
- 14 / 14 A
- Maximum short-circuit current
- 17 / 17 A
- MPPT number / maximum input strings number
- 2 / 2
AC input and output (on-grid)
- Rated output power
- 6,000 W; 4,600 W for VDE-AR-N 4105 and VDE0126-1-1 (1)
- Maximum output apparent power
- 6,000 VA; regional limits apply (1)(2)
- Maximum input power
- 7,360 W
- Grid form
- L / N / PE
- Rated AC output voltage / range
- 230 V / 161–276 V
- Rated grid frequency
- 50 / 60 Hz
- Maximum output current
- 26.0 A
- Maximum input current
- 32.0 A
- Power factor
- >0.99; adjustable 0.8 leading to 0.8 lagging
- THDi at rated output
- <3%
AC output (off-grid)
- Rated output power
- 6,000 W
- Maximum output apparent power
- 10,000 VA for 10 s (3)
- Backup switch time
- <10 ms
- Grid form
- L / N / PE
- Rated output voltage
- 230 V
- Rated output frequency
- 50 / 60 Hz
- Maximum continuous output current
- 26.0 A
- THDv at linear load
- <3%
Efficiency
- MPPT efficiency
- 99.9%
- Maximum efficiency
- 97.6%
- EU efficiency
- 97.0%
- Maximum battery discharge to AC efficiency
- 95.0%
Protection
- Anti-islanding protection
- Integrated
- PV string input reverse polarity protection
- Integrated
- Insulation resistor detection
- Integrated
- Residual current monitoring unit
- Integrated
- AC overcurrent protection
- Integrated
- AC short-circuit protection
- Integrated
- AC overvoltage and undervoltage protection
- Integrated
- Surge protection
- DC Type II / AC Type III
General
- Dimensions (W × H × D)
- 502 × 461 × 202 mm
- Weight
- 24 kg
- Mounting
- Wall mounting
- Operating temperature
- −25 to +65°C; derating above 45°C
- Relative humidity
- 0–95%, no condensation
- Cooling
- Natural convection
- Topology (solar / battery)
- Transformerless / high-frequency isolation
- Altitude
- ≤2,000 m
- Protection degree
- IP65
- Noise
- <40 dB
- User interface
- LED, App; no LCD specified
- Digital input / output
- DRM, 1 × DI, 2 × DO
- Communication
- RS485; optional Wi-Fi / Ethernet / 4G (4)
Certifications and standards
- Grid connection standard
- EN 50549, VDE-AR-N 4105, VFR: 2019, TOR Erzeuger Type A, RD647, NTS (SENP), CEI 0-21 2019:04, C10-11 Type A
- Safety / EMC standard
- IEC 62109-1/-2, EN 61000-6-1/-3
